数据结构

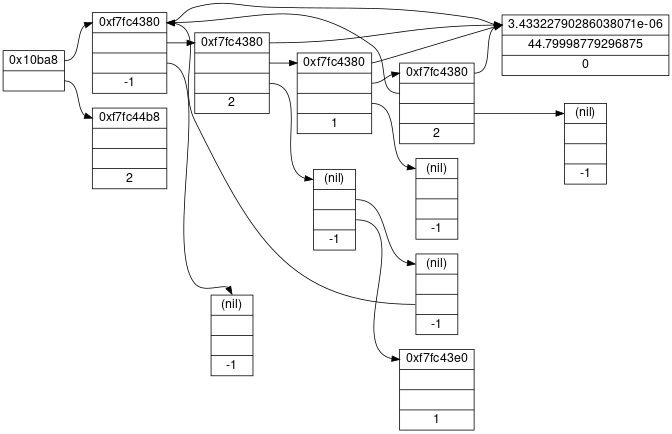

图形文件是从与标准 DBX 调试器进行 LDBX 图形界面的会话中自动生成的。节点使用 record 形状绘制。此形状的标签被特殊解释为嵌套的水平和垂直框列表，格式化为表格。在记录标签中，花括号 { } 包含列表，竖线 | 分隔列表项，<sym> 为附加边的端口标识符创建端口标识符。边也用 id 属性标记。虽然在这个特定文件中没有演示，但这些属性允许引用同一节点对之间的多个（并行）边。
datastruct.gv.txt
digraph g {
fontname="Helvetica,Arial,sans-serif"
node [fontname="Helvetica,Arial,sans-serif"]
edge [fontname="Helvetica,Arial,sans-serif"]
graph [
rankdir = "LR"
];
node [
fontsize = "16"
shape = "ellipse"
];
edge [
];
"node0" [
label = "<f0> 0x10ba8| <f1>"
shape = "record"
];
"node1" [
label = "<f0> 0xf7fc4380| <f1> | <f2> |-1"
shape = "record"
];
"node2" [
label = "<f0> 0xf7fc44b8| | |2"
shape = "record"
];
"node3" [
label = "<f0> 3.43322790286038071e-06|44.79998779296875|0"
shape = "record"
];
"node4" [
label = "<f0> 0xf7fc4380| <f1> | <f2> |2"
shape = "record"
];
"node5" [
label = "<f0> (nil)| | |-1"
shape = "record"
];
"node6" [
label = "<f0> 0xf7fc4380| <f1> | <f2> |1"
shape = "record"
];
"node7" [
label = "<f0> 0xf7fc4380| <f1> | <f2> |2"
shape = "record"
];
"node8" [
label = "<f0> (nil)| | |-1"
shape = "record"
];
"node9" [
label = "<f0> (nil)| | |-1"
shape = "record"
];
"node10" [
label = "<f0> (nil)| <f1> | <f2> |-1"
shape = "record"
];
"node11" [
label = "<f0> (nil)| <f1> | <f2> |-1"
shape = "record"
];
"node12" [
label = "<f0> 0xf7fc43e0| | |1"
shape = "record"
];
"node0":f0 -> "node1":f0 [
id = 0
];
"node0":f1 -> "node2":f0 [
id = 1
];
"node1":f0 -> "node3":f0 [
id = 2
];
"node1":f1 -> "node4":f0 [
id = 3
];
"node1":f2 -> "node5":f0 [
id = 4
];
"node4":f0 -> "node3":f0 [
id = 5
];
"node4":f1 -> "node6":f0 [
id = 6
];
"node4":f2 -> "node10":f0 [
id = 7
];
"node6":f0 -> "node3":f0 [
id = 8
];
"node6":f1 -> "node7":f0 [
id = 9
];
"node6":f2 -> "node9":f0 [
id = 10
];
"node7":f0 -> "node3":f0 [
id = 11
];
"node7":f1 -> "node1":f0 [
id = 12
];
"node7":f2 -> "node8":f0 [
id = 13
];
"node10":f1 -> "node11":f0 [
id = 14
];
"node10":f2 -> "node12":f0 [
id = 15
];
"node11":f2 -> "node1":f0 [
id = 16
];
}版权 © 1996-2004 AT&T。保留所有权利。
