有限状态自动机

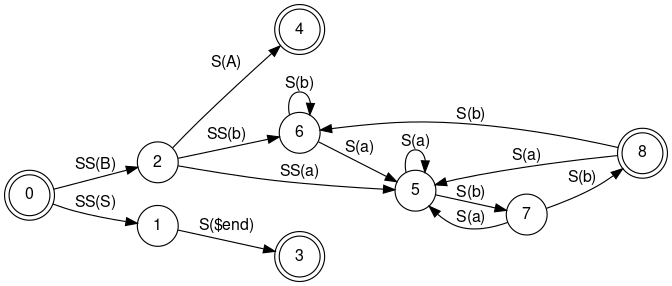

这是一张玩具 解析器 有限状态自动机的图，可能由 Yacc 生成。
rankdir=LR 属性请求从左到右的绘制，以横向模式定向。请注意在边上使用文本标签。
计算从节点 0 开始，并在标记为双圆圈的“接受状态”节点处结束。
fsm.gv.txt
digraph finite_state_machine {
fontname="Helvetica,Arial,sans-serif"
node [fontname="Helvetica,Arial,sans-serif"]
edge [fontname="Helvetica,Arial,sans-serif"]
rankdir=LR;
node [shape = doublecircle]; 0 3 4 8;
node [shape = circle];
0 -> 2 [label = "SS(B)"];
0 -> 1 [label = "SS(S)"];
1 -> 3 [label = "S($end)"];
2 -> 6 [label = "SS(b)"];
2 -> 5 [label = "SS(a)"];
2 -> 4 [label = "S(A)"];
5 -> 7 [label = "S(b)"];
5 -> 5 [label = "S(a)"];
6 -> 6 [label = "S(b)"];
6 -> 5 [label = "S(a)"];
7 -> 8 [label = "S(b)"];
7 -> 5 [label = "S(a)"];
8 -> 6 [label = "S(b)"];
8 -> 5 [label = "S(a)"];
